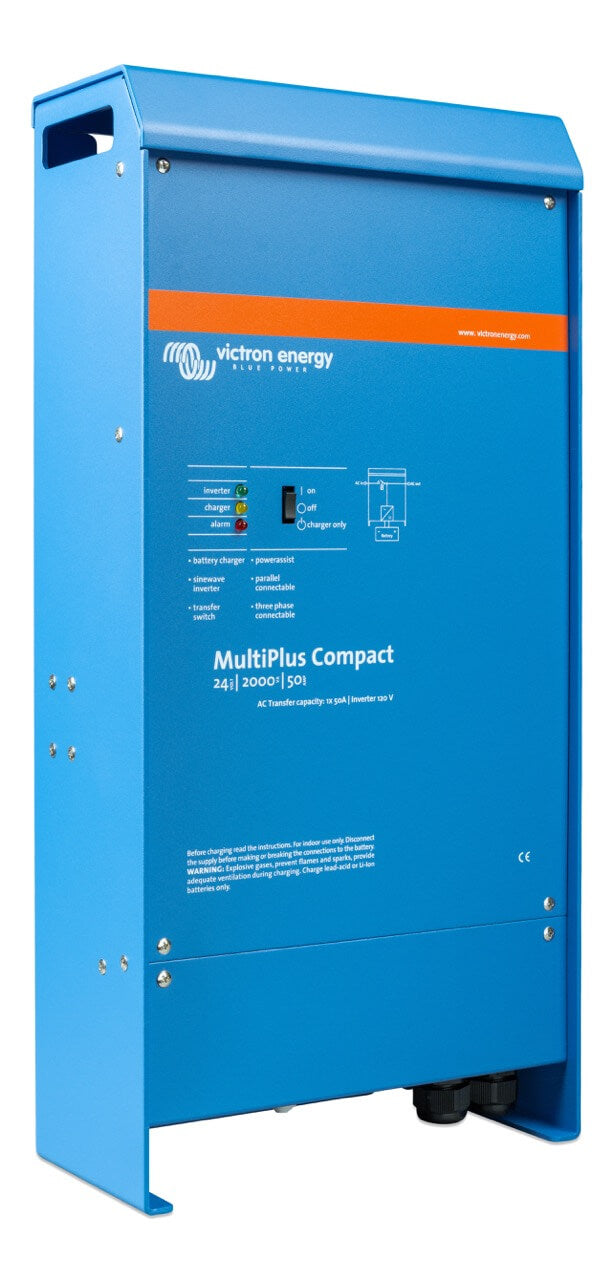

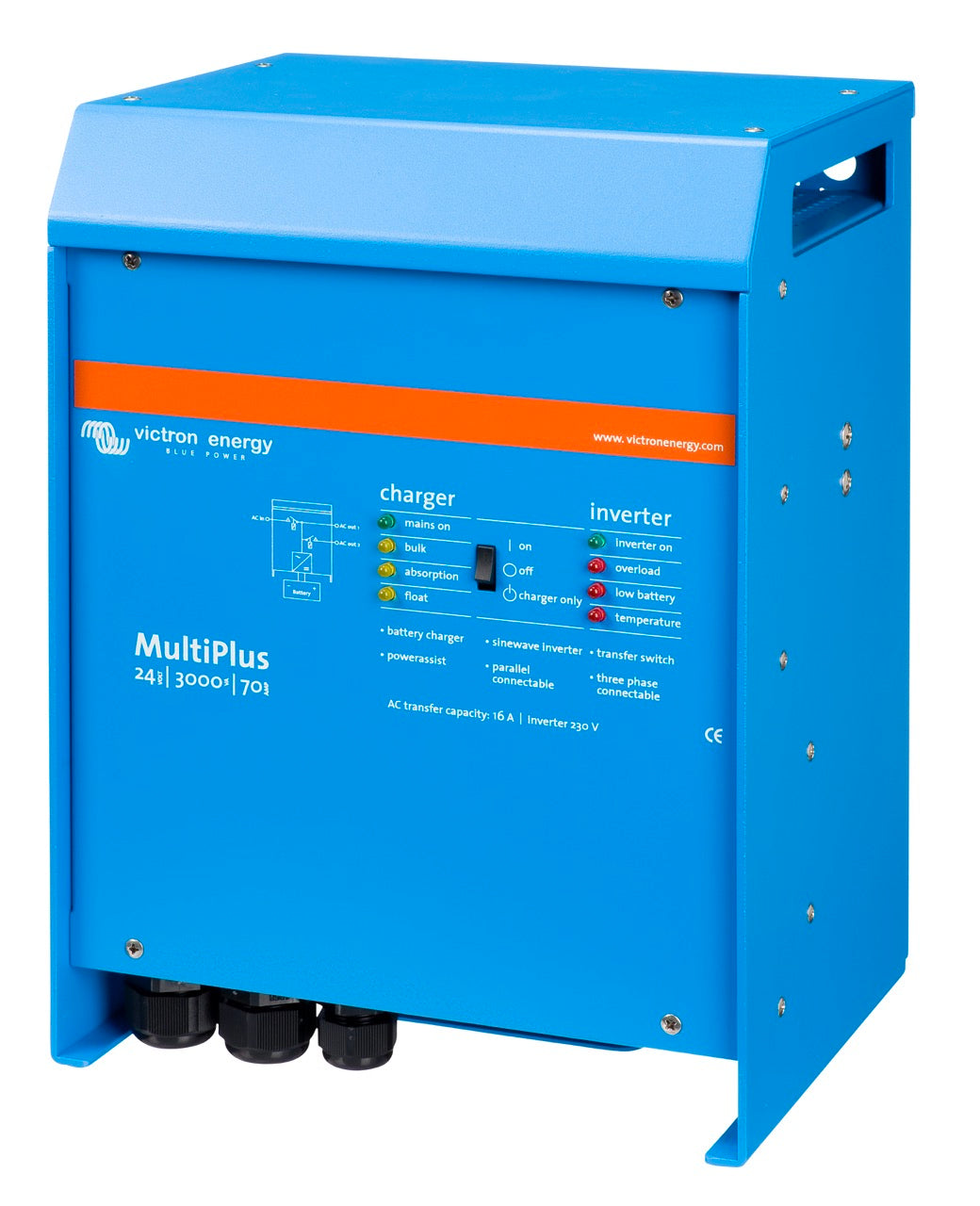

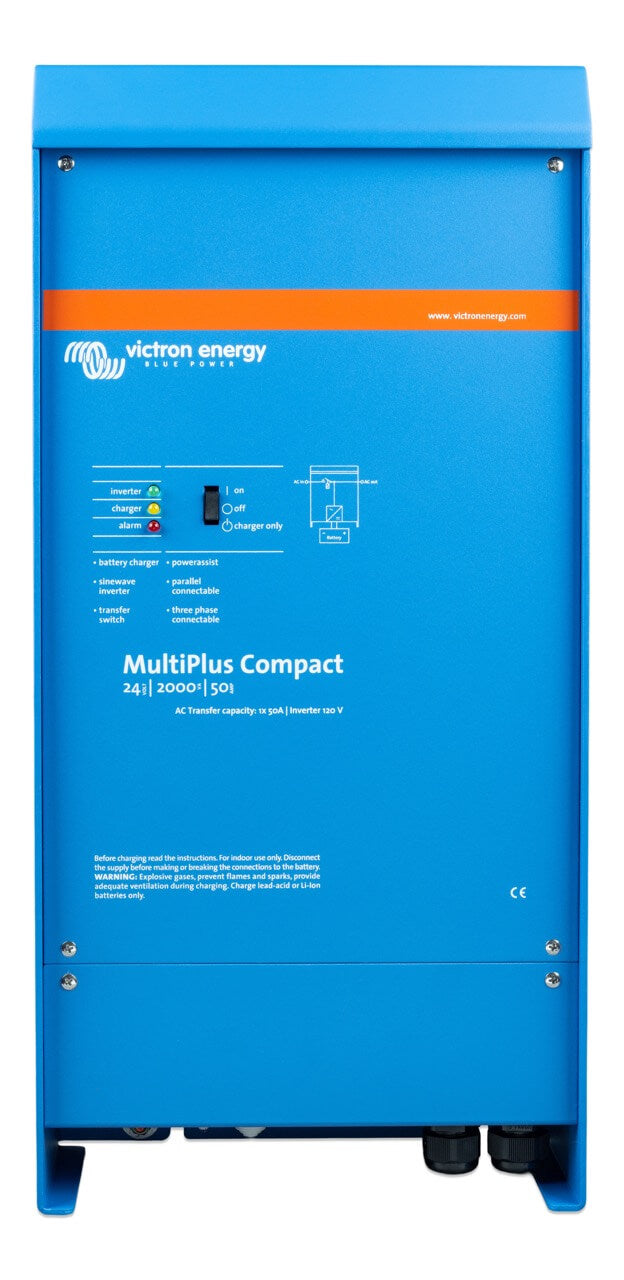

MultiPlus

The MultiPlus is a combined inverter and charger in one package. It is a true sine wave inverter and its features include:

• Adaptive charging
• PowerAssist technology: The MultiPlus will prevent overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
• UPS functionality: In the event of a grid failure the inverter will automatically activate (in under 20 milliseconds) allowing computers, and other electronics to function without interruption.
• Remote Monitoring and control: When coupled with a GX device (e.g. Cerbo GX) you can monitor your system remotely via the VRM app on your smart device.

• MultiPlus units can be wired independently, in parallel for split phase operation or grouped together for 3 phase. This makes it possible to use the MultiPlus for a small single-phase systems, all the way up to a commercial scale3-phase systems.

 Example of Victron Naming Structure:

MultiPlus 24/3000/70-50 120V VE.Bus

• 24 Volt DC battery
• 3000 Volt Amps continuous power rating
• 70 Amp DC battery charger
• 50 Amp AC pass-through transfer relay
• 120 Volt AC inverter
• VE.Bus  inverter communication protocol
